1 线段的性质

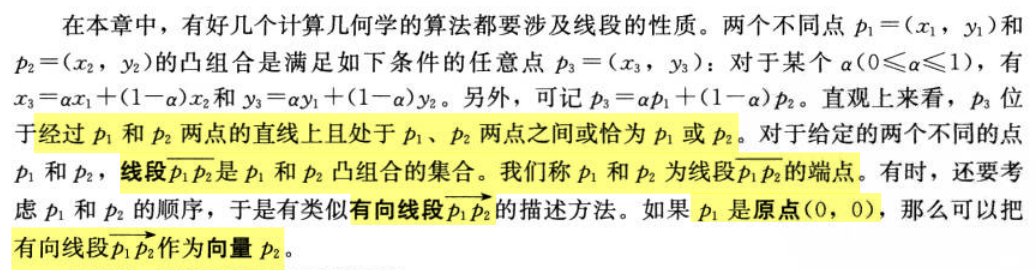

1.1 一些定义

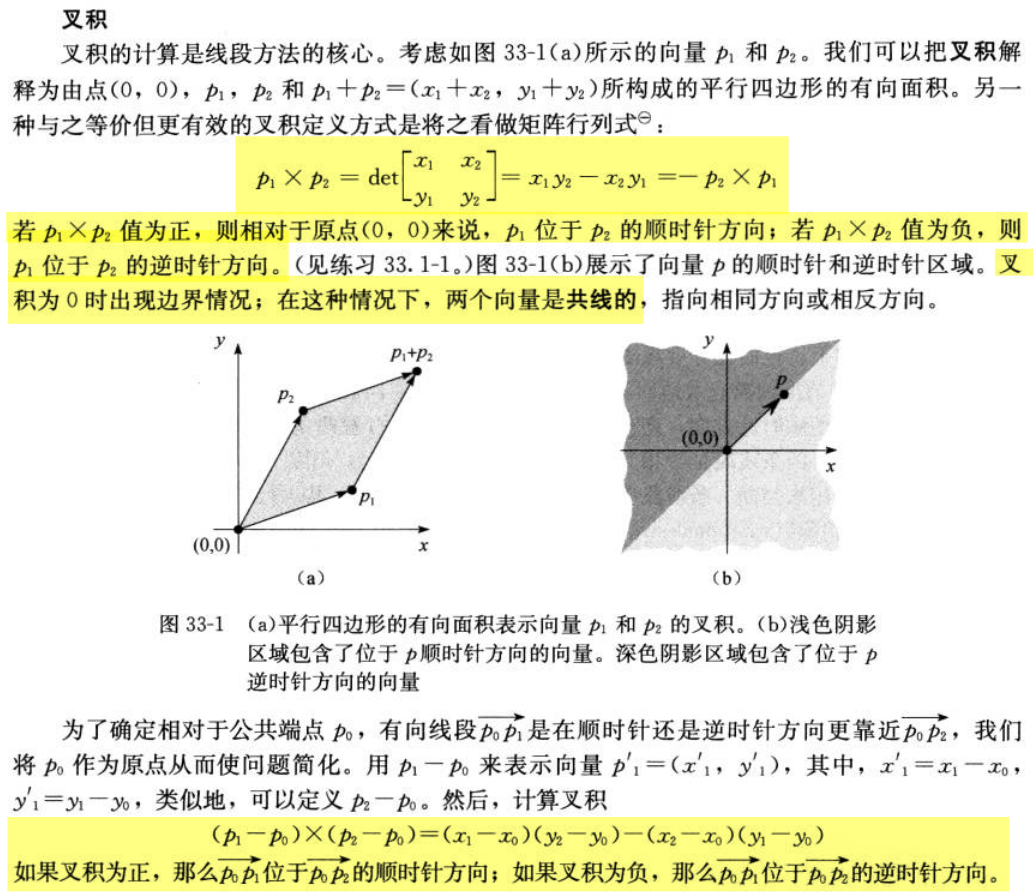

1.2 确定连续线段是向左转还是向右转

已知
计算

• 结果 ，则在 左转
• 结果 ，则在 右转
• 结果 ，则在 三者共线

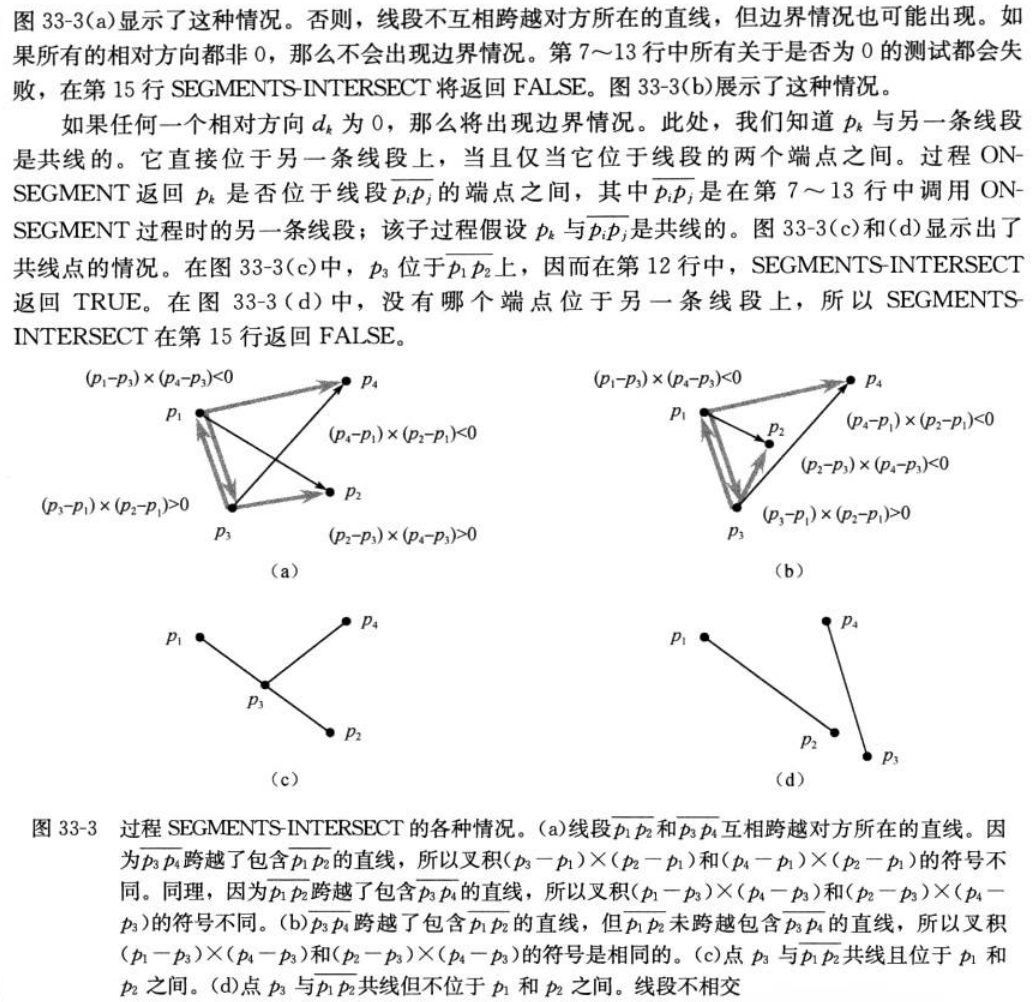

1.3 判定两条线是否相交

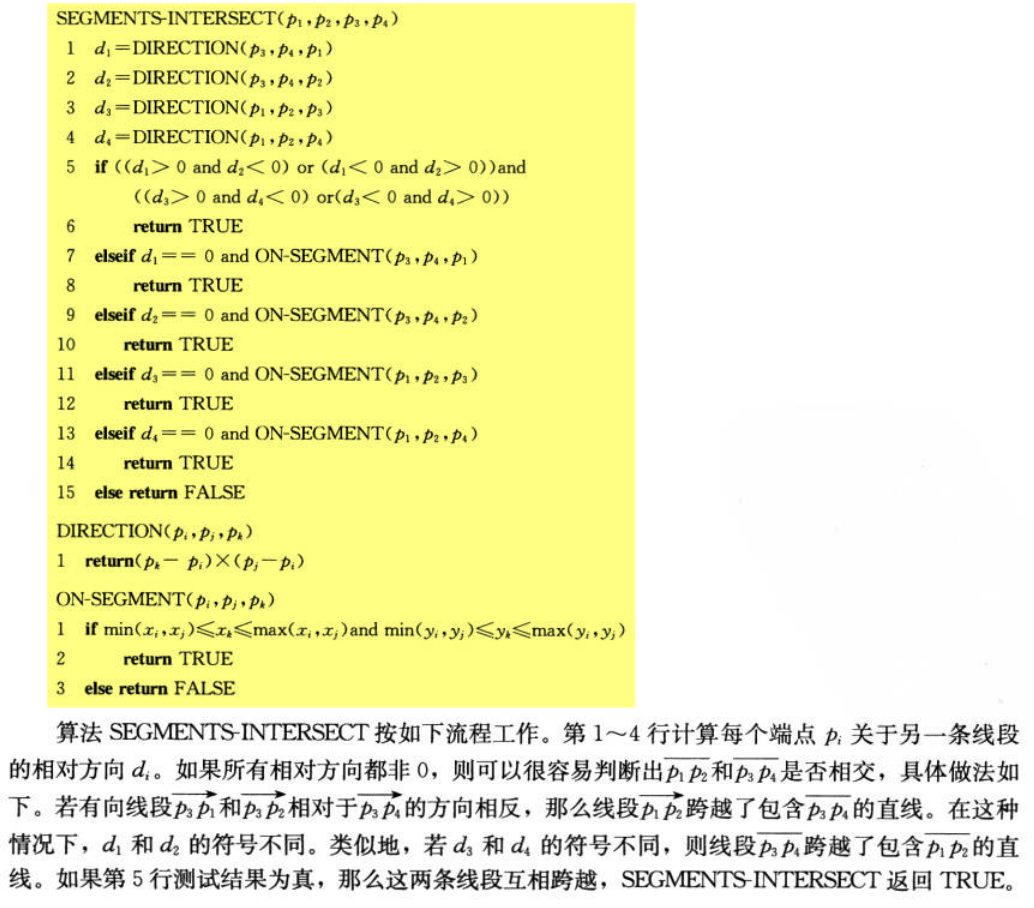

伪代码

cpp实现

struct dot{
    int x, y;
};

int direction(dot pi, dot pj, dot pk){
    return ((pk.x-pi.x)*(pj.y-pi.y)-(pk.y-pi.y)*(pj.x-pi.x));
}
bool onSegment(dot pi, dot pj, dot pk){
    if(min(pi.x, pj.x) <= pk.x && max(pi.x, pj.x) >= pk.x &&
            min(pi.y, pj.y) <= pk.y && max(pi.y, pj.y) >= pk.y){
        return true;
    }
    return false;
}
/*
 * 线段p1p2与p3p4是否相交
 */bool segmentsIntersect(dot p1, dot p2, dot p3, dot p4){
    int d1 = direction(p3, p4, p1);
    int d2 = direction(p3, p4, p2);
    int d3 = direction(p1, p2, p3);
    int d4 = direction(p1, p2, p4);
    if(((d1>0 && d2<0)||(d1<0 && d2>0)) && ((d3>0 && d4<0)||(d3<0 && d4>0))){
        return true;
    }else if(d1 == 0 && onSegment(p3, p4, p1)){
        return true;
    }else if(d2 == 0 && onSegment(p3, p4, p2)){
        return true;
    }else if(d3 == 0 && onSegment(p1, p2, p3)){
        return true;
    }else if(d4 == 0 && onSegment(p1, p2, p4)){
        return true;
    }else{
        return false;
    }
}

2 确定任意一对线段是否相交

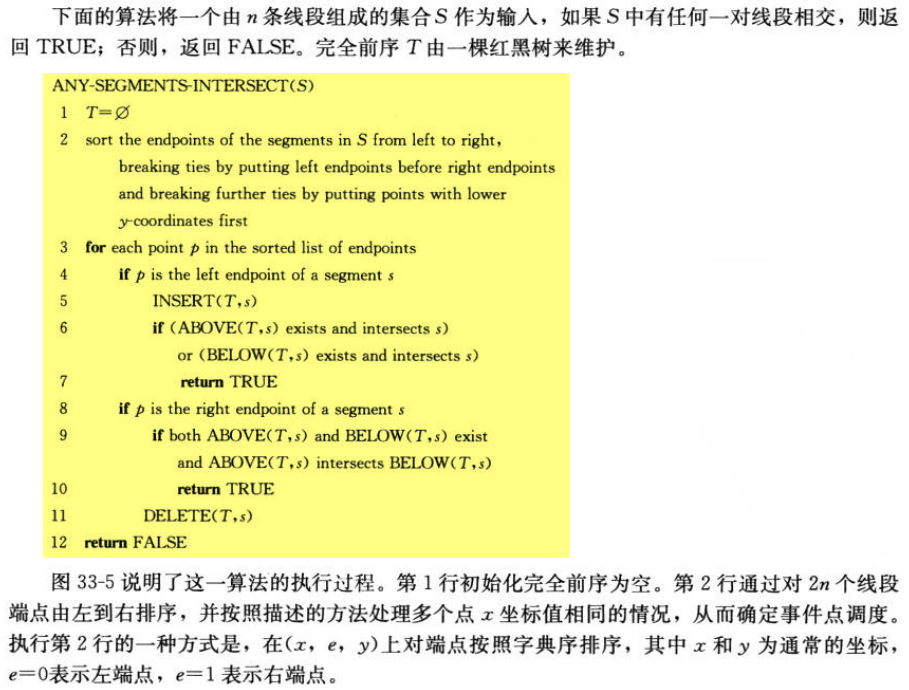

O(nlgn)的红黑树（未实现）

• 简化

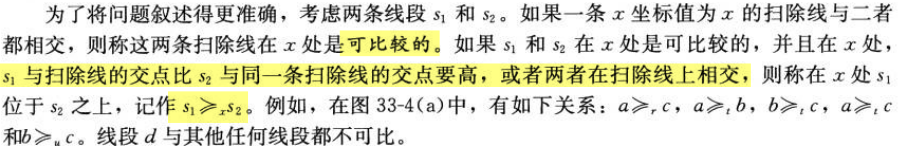

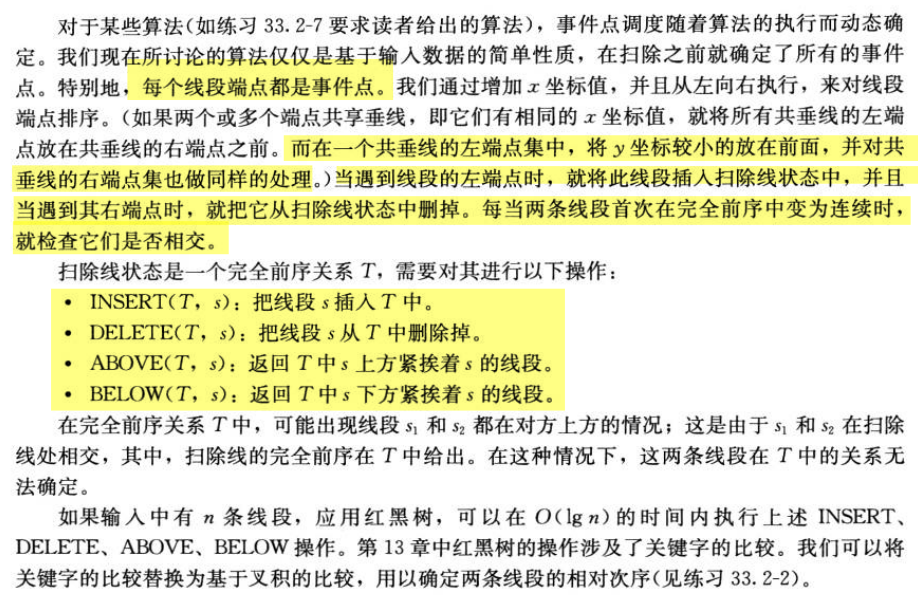

• 线段排序

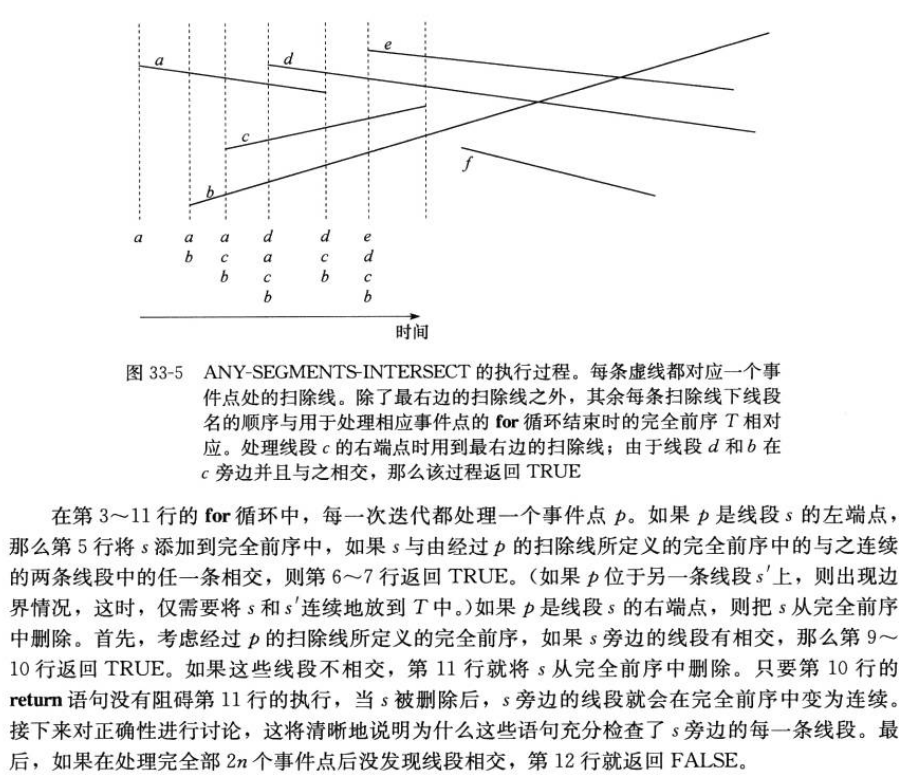

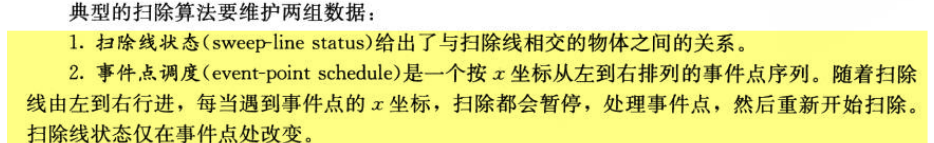

• 移动扫除线


• 求线段交点的伪代码



简单易懂的O(n^2)的cpp实现

#include <iostream>
#include <algorithm>
#include <vector>
using namespace std;

struct Point {
    int x, y;

    Point operator+(const Point &b) const {
        return {x + b.x, y + b.y};
    }

    Point operator-(const Point &b) const {
        return {x - b.x, y - b.y};
    }

    Point operator*(const int &b) const {
        return {x * b, y * b};
    }

    int operator^(const Point &b) const {
        return x * b.y - y * b.x;
    }
};

struct Line {
    Point p;
    Point q;
};

vector<Line> lines;

int sgn(int x);
bool intersect(Line l1, Line l2);
bool onSegment(Point point, Line line);

int main() {
    int n, cnt = 0;
    cin >> n;
    int x1, y1, x2, y2;
    for (int i = 0; i < n; i++) {
        cin >> x1 >> y1 >> x2 >> y2;
        lines.push_back({{x1, y1}, {x2, y2}});
    }
    for (int i = 0; i < n; i++)
        for (int j = 0; j < i; j++)
            if (intersect(lines[i], lines[j]))
                cnt++;
    cout << cnt;
    return 0;
}

int sgn(int x) {
    if (x < 0) return -1;
    if (x > 0) return 1;
    return 0;
}

bool intersect(Line l1, Line l2) {
    int d1 = sgn((l1.q - l1.p) ^ (l2.p - l1.p));
    int d2 = sgn((l1.q - l1.p) ^ (l2.q - l1.p));
    int d3 = sgn((l2.q - l2.p) ^ (l1.p - l2.p));
    int d4 = sgn((l2.q - l2.p) ^ (l1.q - l2.p));
    if (d1 * d2 < 0 && d3 * d4 < 0)
        return true;
    if (d1 == 0 && onSegment(l2.p, l1))
        return true;
    if (d2 == 0 && onSegment(l2.q, l1))
        return true;
    if (d3 == 0 && onSegment(l1.p, l2))
        return true;
    if (d4 == 0 && onSegment(l1.q, l2))
        return true;
    return false;
}

bool onSegment(Point point, Line line) {
    if (point.x >= min(line.p.x, line.q.x) &&
        point.x <= max(line.p.x, line.q.x) &&
        point.y >= min(line.p.y, line.q.y) &&
        point.y <= max(line.p.y, line.q.y))
        return true;
    return false;
}

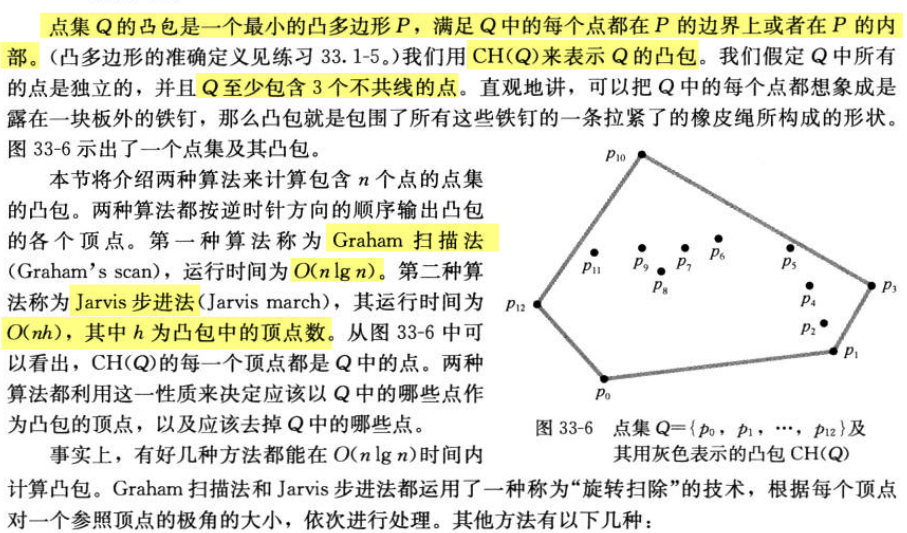

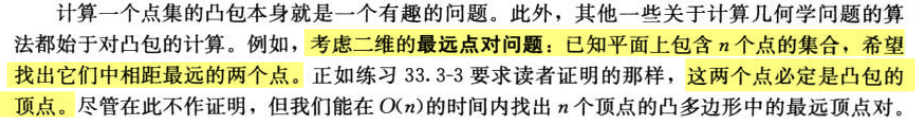

3 寻找凸包

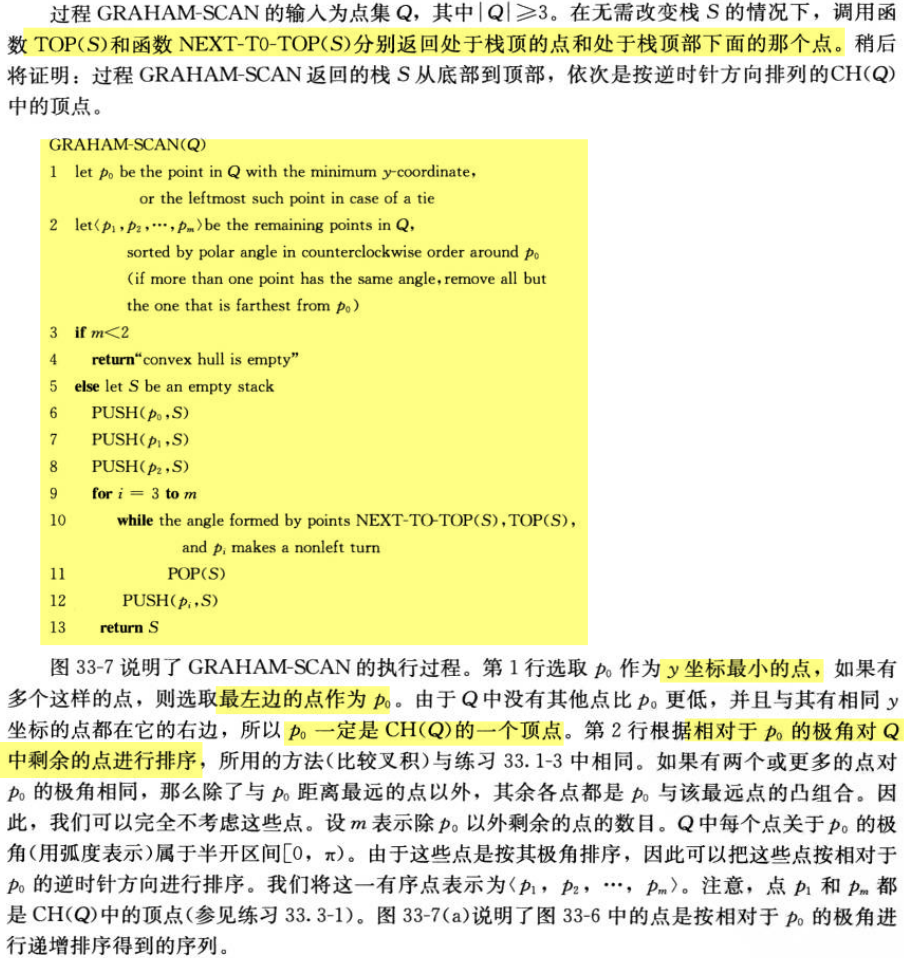

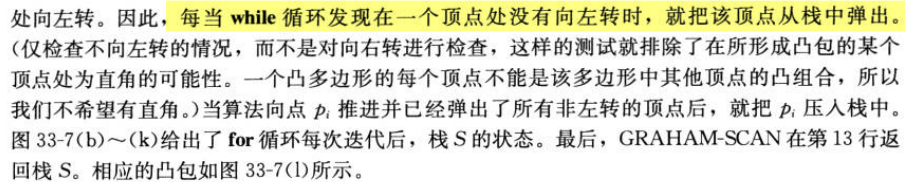

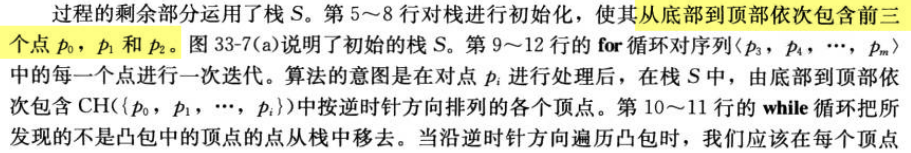

Graham扫描法

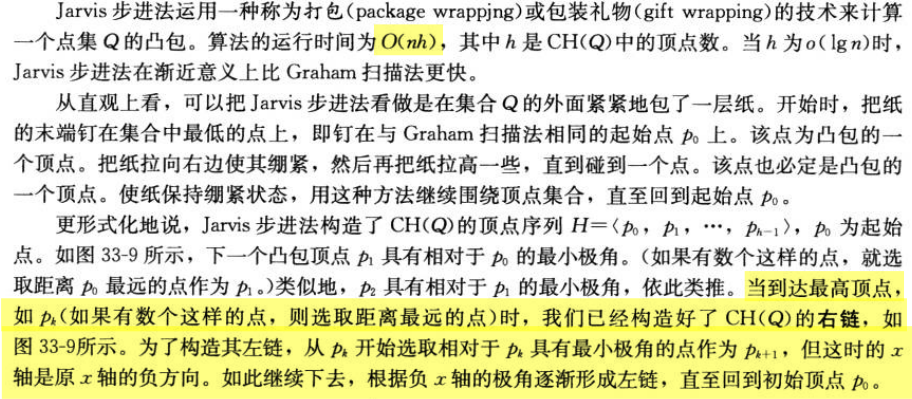

Jarvis步进法

Graham扫描法 cpp实现

#include <iostream>
#include <algorithm>
#include <cmath>
#include <cstdio>

using namespace std;

const int MAX = 200005;
const double eps = 1e-7;

struct Point {
double x, y;

Point operator+(const Point &b) const {
return {x + b.x, y + b.y};
}

Point operator-(const Point &b) const {
return {x - b.x, y - b.y};
}

double operator^(const Point &b) const {
return x * b.y - y * b.x;
}

bool operator<(const Point &b) const {
if (x != b.x)
return x < b.x;
return y < b.y;
}
};

Point p[MAX];
Point s[MAX];
int top;

void selMin(int n);
int cmp(Point a, Point b);
bool equal(double a, double b);
double dis(Point a, Point b);
void graham(int n);
double s_sqr(Point a, Point b, Point c);
double diameter();

int main() {
	int n;
	cin >> n;
	for (int i = 0; i < n; i++)
		cin >> p[i].x >> p[i].y;
	selMin(n);
	sort(p + 1, p + n, cmp);
	graham(n);
	printf("%.6f", sqrt(diameter())) ;
	return 0;
}

void selMin(int n) {
	Point Min = p[0];
	int IDMin = 0;
	for (int i = 0; i < n; i++)
		if (p[i] < Min) {
			Min = p[i];
			IDMin = i;
		}
	swap(p[0], p[IDMin]);
}

int cmp(Point a, Point b) {
	double x = (a - p[0]) ^ (b - p[0]);
	if (x > 0)
		return 1;
	if (equal(x, 0) && (dis(a, p[0]) < dis(b, p[0])))
		return 1;
	return 0;
}

double dis(Point a, Point b) {
	double x = a.x - b.x;
	double y = a.y - b.y;
	return x * x + y * y;
}

void graham(int n) {
	top = 1;
	s[0] = p[0];
	s[1] = p[1];
	for (int i = 2; i < n; i++) {
		while (top > 1 && ((p[i] - s[top]) ^ (s[top - 1] - s[top])) <= 0)
			top--;
		s[++top] = p[i];
	}
}

double s_sqr(Point a, Point b, Point c) {
	return fabs((a - b) ^ (c - b));
}

double diameter() {
	double diam = 0;
	int j = 2;
	s[++top] = s[0];
	if (top < 3)
	return dis(s[0], s[1]);
	for (int i = 0; i < top - 1; i++) {
		while (s_sqr(s[i], s[i + 1], s[j]) < s_sqr(s[i], s[i + 1], s[(j + 1) % top]))
			j = (j + 1) % top;
		diam = max(diam, max(dis(s[i], s[j]), dis(s[i + 1], s[j])));
	}
	return diam;
}
bool equal(double a, double b){
	return fabs(a - b) < eps;
}

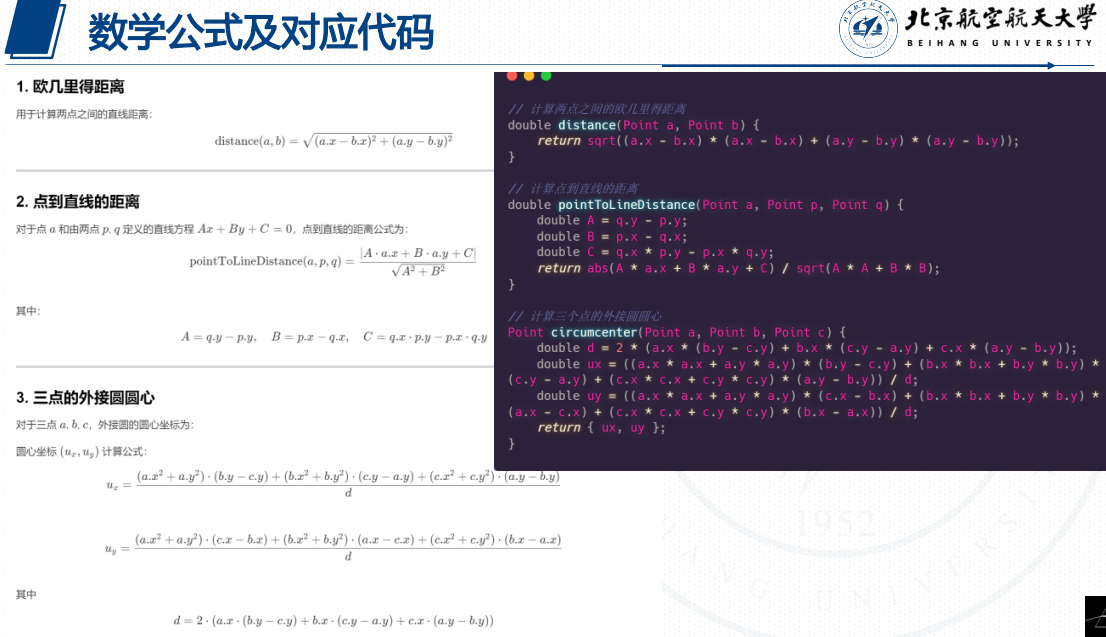

4 其他会用到的公式
